Komatsu haulpak 860p spesification

Komatsu haulpak 860p

 is one large dump truck. Judging from its name, we can determine the specifications of these trucks dunp. Haulpak is a brand of that unit in the manufacturer Komatsu. 860 is the capacity of the units of £ 860,000 or 390 Tons. According to https://typestrucks.com , here :

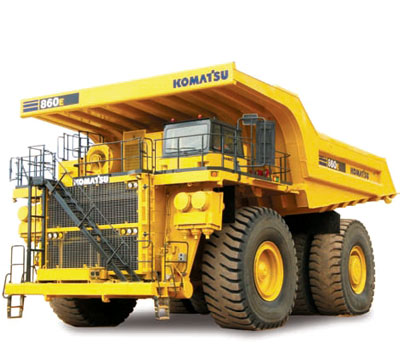

KOMATSU HAULPAK 860E

KOMATSU HAULPAK 860E ENGINE SPECIFICATION
Make and modelKomatsu SSDA16V160 Tier 2
Fuel Diesel
Number of cylinders 16
Operating cycle 4 cycle
Gross horsepower* @ 1900 rpm 2,700 HP 2014 kW
Net flywheel power** @ 1900 rpm 2,550 HP 1902 kW
Weight (wet) 21,182 lb 9608 kg

* Gross horsepower is the output of the engine as installed in this machine, at governed rpm and with engine manufacturer’s approved fuel setting. Accessory losses included are water pump, fuel pump and oil pump.

**Net flywheel power is the rated power at the engine flywheel minus the average accessory losses. Accessories include fan and charging alternator. Rating(s) represent net engine performance in accordance with SAE J1349 conditions.

ELECTRIC DRIVE
AC/DC CURRENT
Drive System* komatsu AC Drive
Alternator DRLDZ5010-AL
Dual Fan Main Blower 14,800 cfm 419 m³/min
ControlI GBT AC Torque Control System
Ratio 35.52:1
Speed (maximum) 40 mph 64.5 km/h
*Wheel motor drive system application depends upon gross vehicle weight, haul road grade, haul road length, rolling resistance and other parameters. Komatsu must analyze each job condition to assure proper application.

BACA JUGA  Belajar Fotografi di Summarecon Digital Center

TIRE AND RIMS
Rock service, tubeless, radial tires:
Standard tire* 50/80 R57
Optional tire* 50/90 R57
Flange mount rim 34” x 57” x 6” rim assembly 864 mm x 1448 mm x 152 mm rim assembly
Typical total tire weight 50,780 lb 23033 kg
* Tires should meet application requirements for tkph/tmph, tread, compound, inflation pressure, ply rating or equivalent, etc.

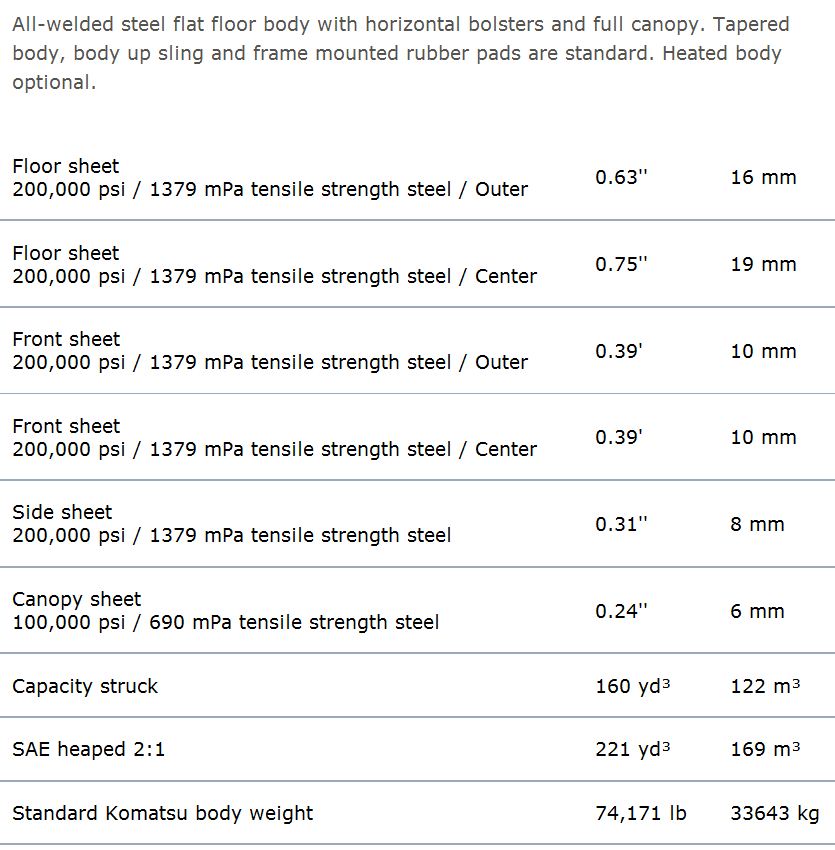

Body Komatsu Haulpak 860E

Body Komatsu Haulpak 860E


CAB

Advanced Operator Environment with isolation mounted, integral 4- post ROPS/FOPS Level 2 structure. Adjustable air suspension seat w/lumbar support, arm rests, and 3-point seat belt, full-size passenger seat, thermal insulation, tilt and telescoping steering wheel, electric windshield wipers w/washer, tinted safety glass, power windows, Komatsu Payload Weighing System, 61,000 Btu/hr heater and defroster, 19,900 Btu/hr air conditioning (HFC – 134A refrigerant).

System Breaking Komatsu Haulpak 860E

System Breaking Komatsu Haulpak 860E

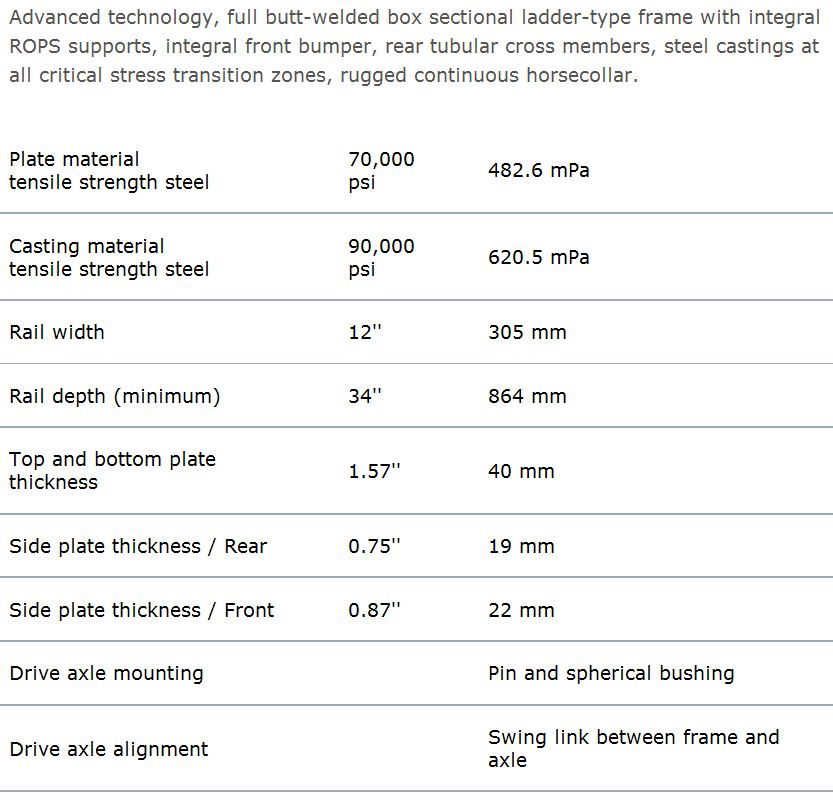

Frame Komatsu Haulpak 860E

Frame Komatsu Haulpak 860E

System Suspension Komatsu Haulpak 860E

System Suspension Komatsu Haulpak 860E


COOLING SYSTEM

L&M radiator assembly, split-flow, with deaerator-type top tank.
Radiator frontal area 62.5 ft² 5.81 m²

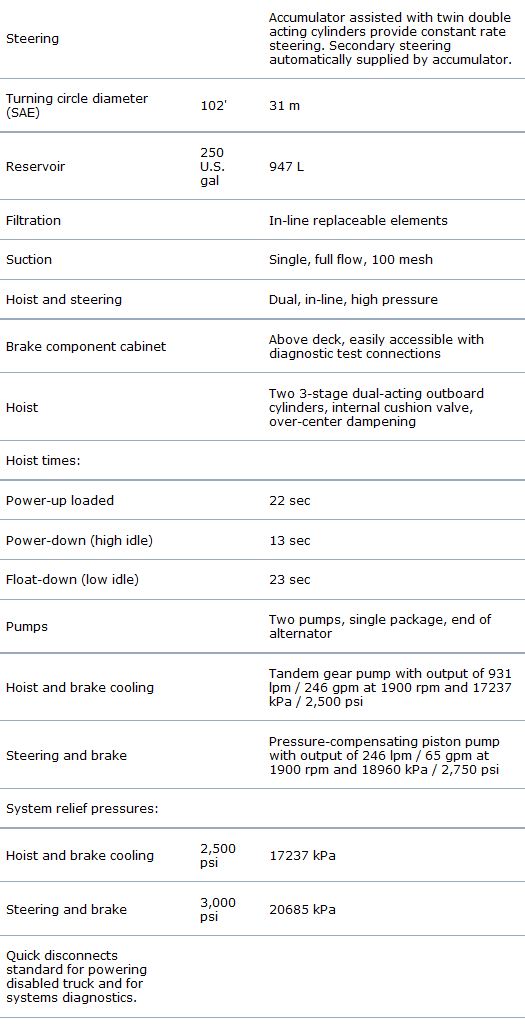

System Hidraulic Komatsu Haulpak 860E

System Hidraulic Komatsu Haulpak 860E

SERVICE CAPACITIES
Cooling System 125 U.S. gal 473 L
Crankcase 74 U.S. gal 280 L
Hydraulic system 425 U.S. gal 1609 L
Motor gear box (each) 32 U.S. gal 121 L
Inverter cooling system 6.5 U.S. gal 25 L
Fuel 1,200 U.S. gal 4542 L
Reserve Oil® System 30 U.S. gal 114 L

BACA JUGA  RI Melaporkan Ke PBB Tentang Papua: Pasukan Keamanan Profesional

ELECTRIC SYSTEM
4 x 8D 1450 CCA, 12 volt, in series/parallel, 220-ampere-hour batteries, bumper-mounted with disconnect switch.
Alternator 24 volt, 140 amp
Lighting 24 volt
Cranking motors Two/24 volt

KOMATSU HAULPAK 860E DIMENSION

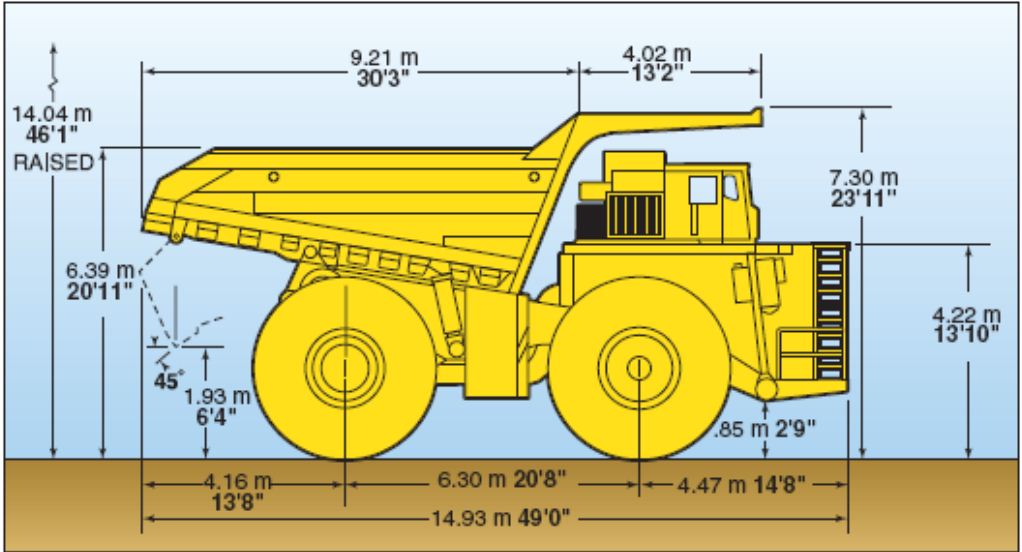

KOMATSU HAULPAK 860-E Side Dimension

KOMATSU HAULPAK 860-E Front Dimension

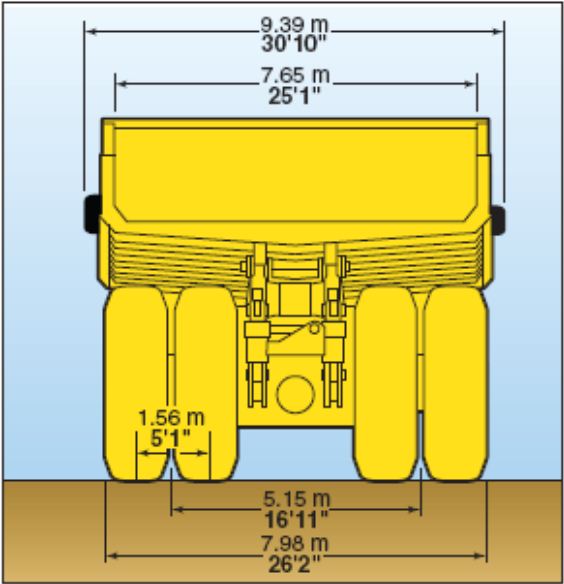

KOMATSU HAULPAK 860-E Rear Dimension
